3015 Open Exchange Table Fiber Laser Cutting Machine | Dual Pallet Efficiency | Arcus CNC

Description

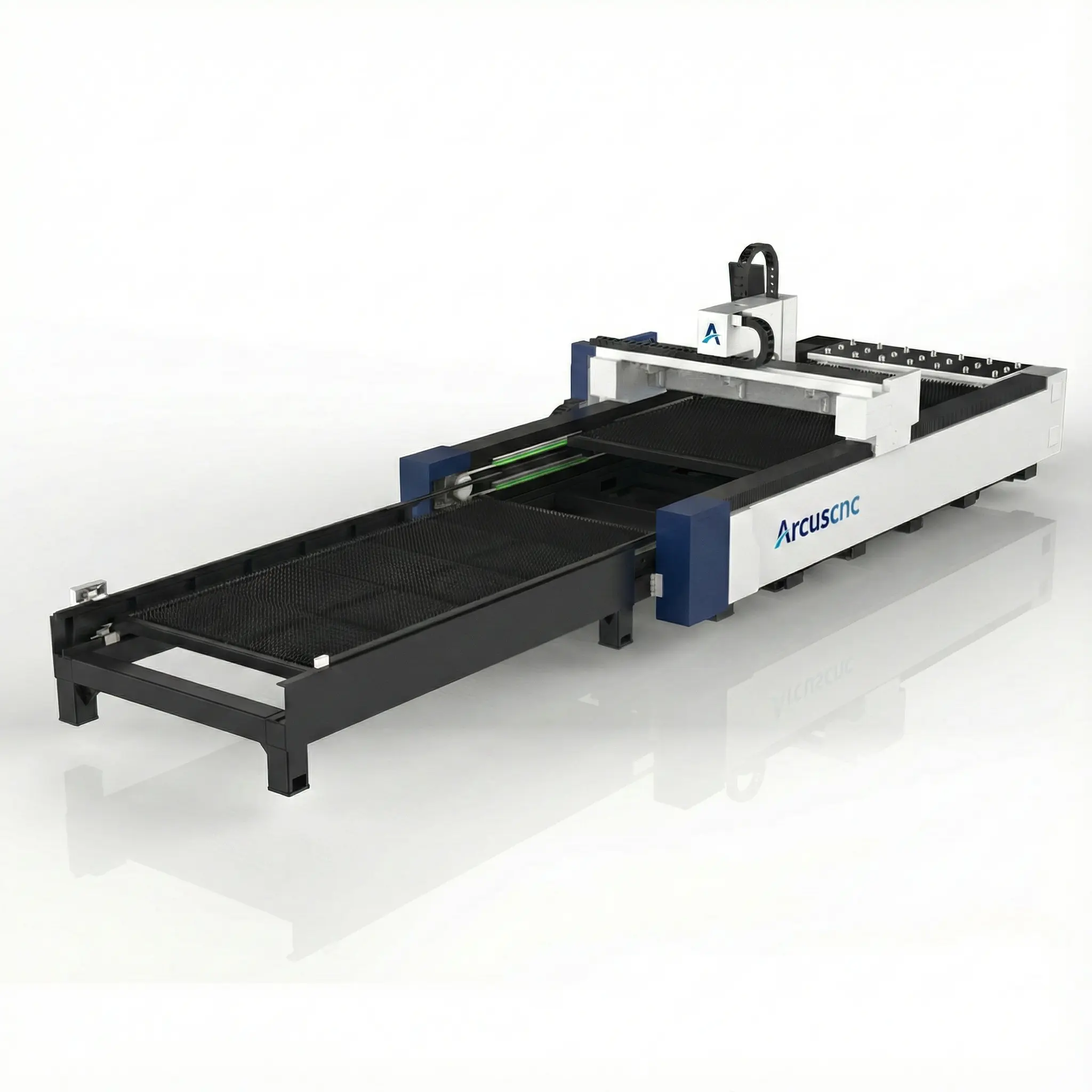

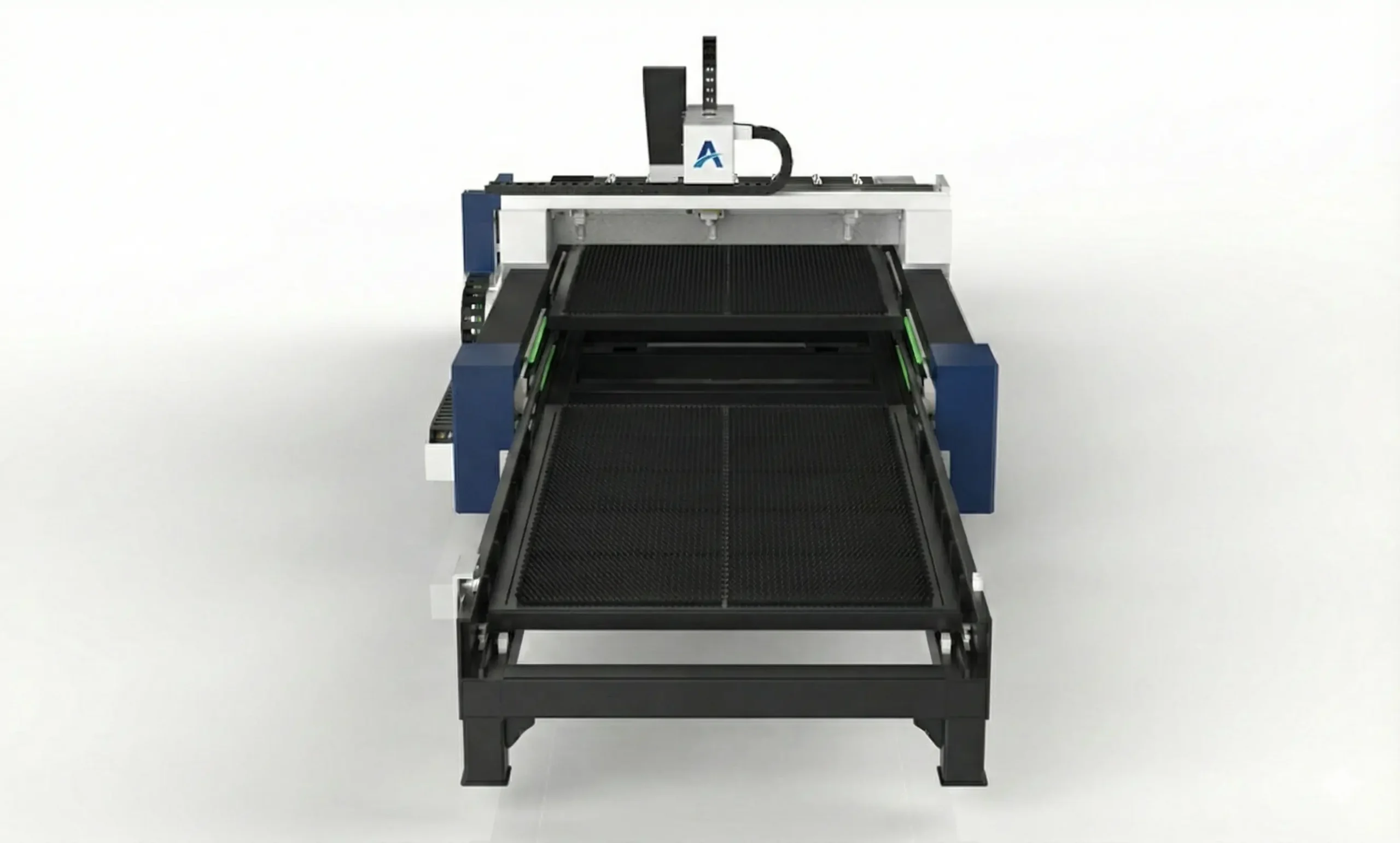

Arcus 3015 Open Exchange Series Double Your Output. Keep It Accessible.

Get the throughput of a high-end automation system with the accessibility of an open machine. The Arcus 3015 Open Exchange Platform combines a fast Dual-Pallet Shuttle System with an open architecture. While the laser cuts on Table A, your operator loads Table B. No downtime, no waiting, just continuous production—at a fraction of the cost of fully enclosed models.

• Type: Open Design + Dual Exchange Tables

• Exchange Time: 15 Seconds

• Power Range: 1kW – 6kW (Customizable up to 12kW)

• Ideal For: High-volume fabrication shops with limited budget or space constraints.

Open Design, Safe Operation

Safety is paramount when using an automatic shuttle table.

• Safety Light Curtains: We install sensitive infrared safety barriers around the exchange area. If an operator steps into the exchange zone during movement, the machine pauses instantly to prevent injury.

• Zoned Dust Extraction: Even without a full cover, our segmented dust removal system under the bed powerfully sucks smoke downwards, keeping your shop air cleaner.

Robust Platform for Fast Exchanging

• Stable Exchange System: Driven by a heavy-duty chain and sprocket mechanism, the two tables swap positions smoothly in just 15 seconds.

• High-Lo Position Design: The hydraulic lifting system ensures precise locking accuracy (±0.03mm) after every exchange, ensuring your cut parts are always within tolerance.

• Annealed Welded Bed: The heavy plate-welded frame is thermally treated to withstand the inertia of high-speed movements, guaranteeing a lifespan of over 10 years without deformation.

Technical Specifications

Premium Components for Reliability

• Laser Source: IPG / Raycus / Max.

• Cutting Head: Raytools / Precitec (Auto-focus).

• Control System: CypCut (The industry standard for ease of use).

• Guide Rails & Racks: Hiwin/PMI & YYC/Apex for smooth motion.

FAQ

Q: How much space do I need for this machine?

A: Since it has dual tables, it is longer than a standard machine. You will need a space approximately 8 to 9 meters long and 3-4 meters wide. Contact us for a precise layout drawing.

Q: Can I cut reflective materials like Aluminum?

A: Yes, with fiber laser technology (Raycus/IPG), cutting aluminum, brass, and copper is standard.

Q: Is shipping expensive?

A: The open design allows for more compact packing compared to fully enclosed units. It typically fits into a 40HQ container, saving you ocean freight costs.
