Description

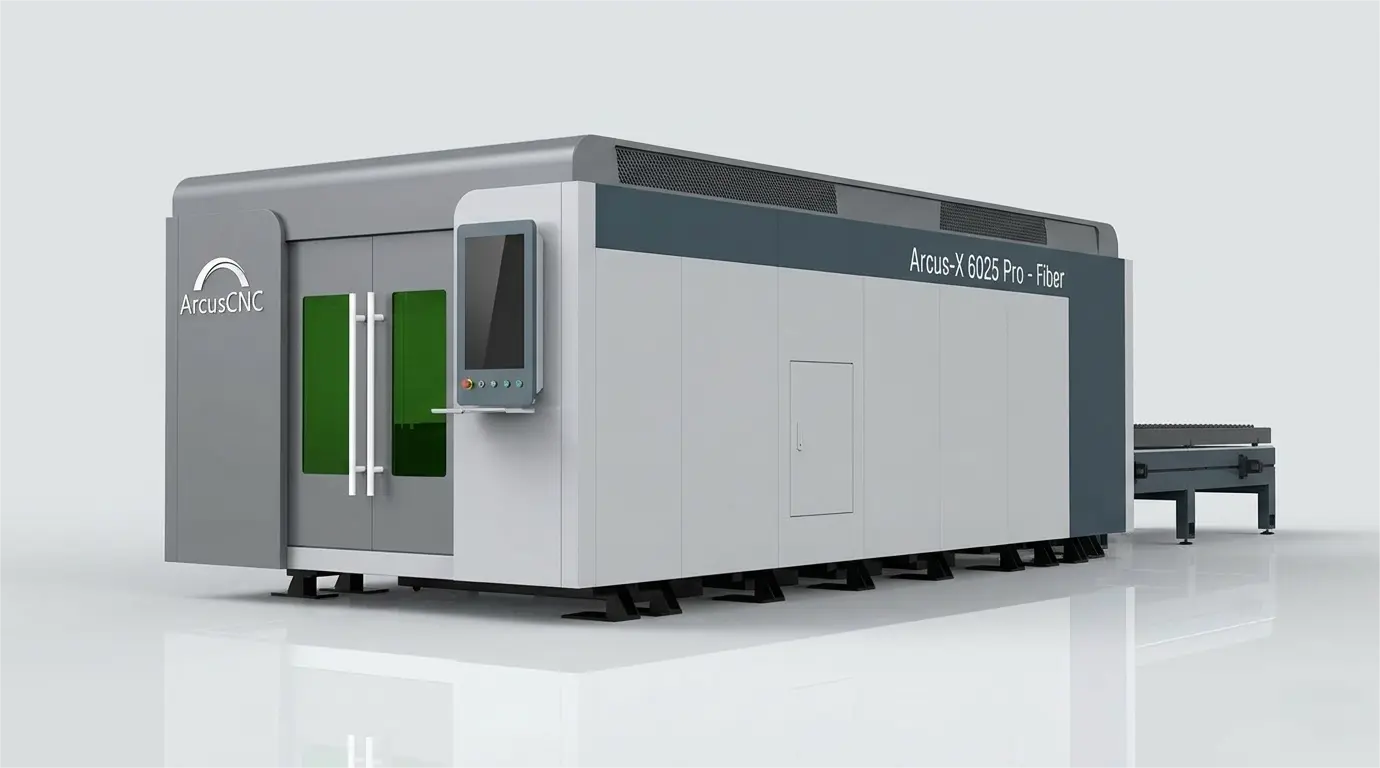

Why Choose This Industrial Fiber Laser Cutting Machine?
-
Zero downtime – Dual automatic exchange pallet swaps sheets in ≤20 seconds while cutting continues.
-
Full enclosure safety – CE-certified laser‑safe glass, interlock doors, zero stray radiation.
-
Cuts thick plates – 30mm mild steel / 25mm stainless / 20mm aluminum (12kW model).
-
High precision – ±0.03mm/m positioning, ±0.02mm repeatability.
-
Automation ready – Vision processor + automatic mode for robotic loading/unloading.
-
Low maintenance – Quick‑release optics, 15 min weekly cleaning.
Core Parameters of the Full Enclosure Fiber Laser Cutter
Only the most essential specs for quick decision‑making.
| Model | 3kW | 6kW | 12kW |
|---|---|---|---|
| Max. mild steel thickness | 20mm | 25mm | 30mm |
| Max. stainless thickness | 12mm | 20mm | 25mm |
| Max. aluminum thickness | 8mm | 12mm | 20mm |
| Positioning accuracy | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m |
| Max. acceleration | 1.5G | 1.5G | 1.5G |
| Pallet swap time | ≤20s | ≤20s | ≤20s |
Components – What’s Inside This Automatic Exchange Table Laser Cutter
Laser source – IPG / Raycus / Max. Maintenance‑free module, 3–12kW.
Cutting head – Precitec or Raytools. Motorized autofocus with ±0.01mm resolution.
Drive system – Yaskawa servos + THK linear guides + Atlanta rack & pinion (German precision).
Exchange platform – Heavy‑duty chain drive, 3,000kg max load per pallet.
Control & vision – CypCut / Beckhoff with vision processor for automatic nozzle centering & height sensing.
Applications – Where This High Power Laser Cutting Machine Delivers ROI
| Industry | Typical parts | Recommended power |
|---|---|---|
| Sheet metal fabrication | Chassis, enclosures, brackets | 3–6kW |
| Automotive parts | Frame rails, floor pans, flanges | 6–12kW |
| Heavy machinery | Excavator plates, bulldozer parts | 12kW |
| Railway & shipbuilding | Bulkheads, floor plates | 12kW |
| Metal service centers | Cut‑to‑size blanks for clients | 6–12kW |
| Agricultural equipment | Harvester parts, plow shares | 6kW |
After‑Sales Service – We Support Your Production, Not Just the Machine
-
Warranty: 2 years entire machine, 3 years on laser source.
-
Response: 2 hours remote (phone/WhatsApp), 48 hours on‑site.
-
Spare parts: Warehouses in USA, Germany, UAE, Thailand – same‑day dispatch.
-
Training: 5 days on‑site at your facility, included in price.
-
Software updates: Free for life (cutting parameter database).
Customer Feedback – What Real Users Say About Our CNC Fiber Laser Cutter
“We replaced a 4kW plasma with this 12kW full enclosure fiber laser. Cutting 1‑inch steel plate is now 40% faster. The automatic exchange table paid for itself in 6 months.”
– Michael R., Metal Fabrication Manager, Texas, USA
“The full enclosure made our safety inspector very happy. No smoke, no stray light. And the vision‑based autofocus saves a nozzle change every shift.”
– Liu Wei, Production Director, Suzhou, China
“We cut both 0.5mm stainless for electronics and 20mm mild steel for construction – the same machine handles both without tuning, just change the gas.”
– Ahmed K., Technical Director, Dubai, UAE
*“Competitor quoted 30% higher. This machine has run 16 hours/day for 14 months – zero downtime except routine lens cleaning.”*
– Carlos G., Plant Manager, Mexico City
Real Case Study – 12kW Full Enclosure Fiber Laser Cutter in Automotive Tier‑1 Supplier
Client: A leading chassis parts manufacturer in Germany.
Challenge: Cutting 6–15mm S500MC steel for truck frames. Their old plasma cutter caused a heat‑affected zone (HAZ) and required secondary grinding.
Our solution: One 12kW automatic exchange platform fiber laser cutter with full enclosure.
Results after 6 months:
-
Cutting speed increased 4x (1.2 m/min → 4.8 m/min on 15mm steel).
-
No secondary grinding – saved 2 operators.
-
Material utilization improved 18% via nesting software.
-
ROI achieved in 11 months.
Why Choose us
-
We guarantee output per shift – not just machine delivery.
-
Full enclosure means CE / OSHA / FDA compliant – no safety inspection worries.
-
12m bed as standard; we can build up to 24m for long profiles.
-
Transparent pricing – no hidden fees for freight or installation.
-
Spare parts in 4 continents – minimize your downtime.
FAQ – Frequently Asked Questions
Q1: Can I cut aluminum with this machine?
A: Yes. 1–8mm aluminum with nitrogen or compressed air; thicker aluminum requires high‑pressure nitrogen.
Q2: How long does the exchange platform last?
A: The chain‑drive system is rated for 2 million cycles – about 10 years at 100 swaps per day.
Q3: Is training provided in my country?
A: Yes. We have local service engineers in 25 countries. Training is done at your facility – no travel needed for you.
Q4: Can I add a robotic loader later?
A: Absolutely. The control system has an EtherCAT robotic interface, and the enclosure has pre‑drilled holes for conveyor integration.
Q5: What is the power consumption?
A: A 12kW machine running at full cut consumes ≈28–35 kWh. Standby mode drops to less than 2 kWh.
Q6: Does full enclosure make maintenance difficult?
A: No. There are four large access doors with safety interlocks. Cleaning the cutting area takes 5 minutes.
Q7: What’s the minimum power for cutting 20mm steel?
A: 6kW cuts 20mm mild steel at 1.2 m/min; 12kW cuts at 2.5 m/min. For regular heavy plates, choose ≥6kW.
