Description

Introduction: Is Your Fabrication Floor Bleeding Money?

If you walk onto your production floor right now, what do you see? Do you see operators measuring lengths with tape measures? Do you hear the screech of a bandsaw? Do you see a pile of “tailings” (waste pipe) in the scrap bin?

If the answer is yes, you are looking at the past.

In the highly competitive world of metal fabrication, traditional pipe processing—sawing, drilling, milling, and deburring—is a silent profit killer. It’s slow, it’s labor-intensive, and it’s prone to human error.

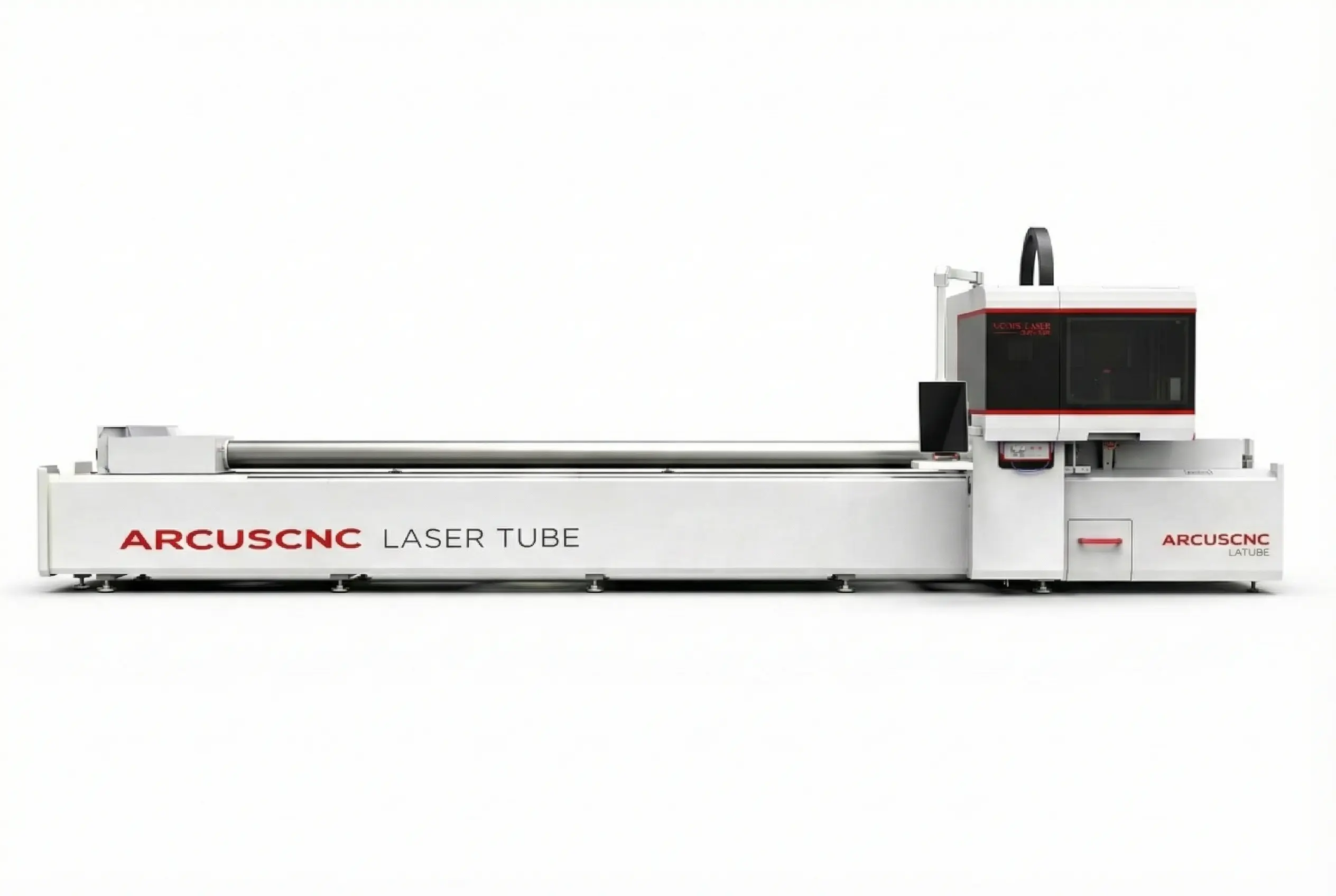

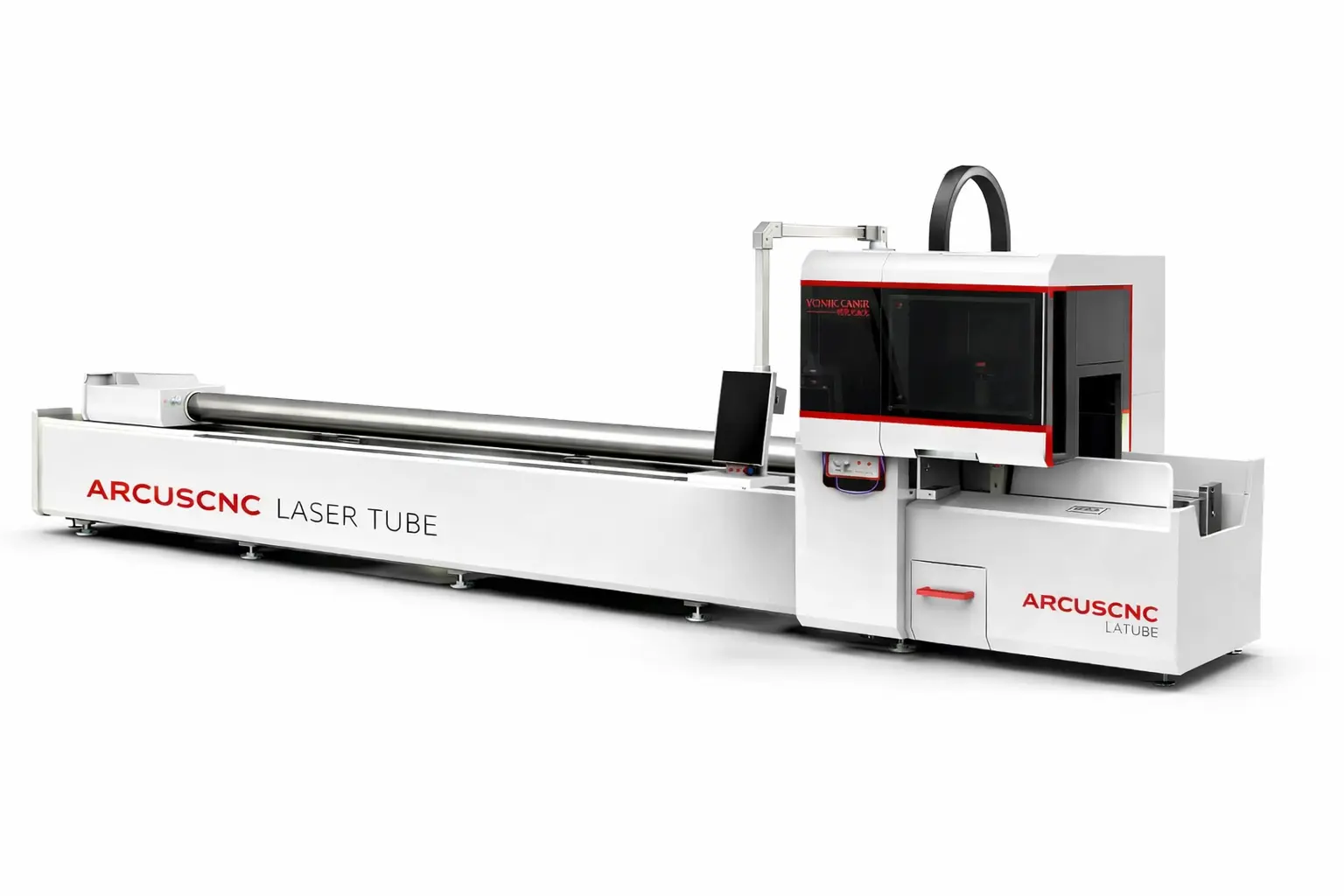

Enter the Arcus CNC Fiber Laser Tube Cutting Machine.

We are not just talking about a machine that cuts faster. We are talking about a technological leap that condenses four separate manufacturing steps into one continuous, automated process. Imagine taking a 6-meter raw steel tube and transforming it into a fully finished, hole-punched, bevel-cut component in under 60 seconds—with laser cutting precision that no human hand can match.

Transform Your Tube Fabrication: Faster, Cleaner, Smarter.

Stop bottlenecking your production line with bandsaws, drill presses, and manual deburring stations. The Arcus CNC T-Series Fiber Laser Tube Cutting Machine consolidates sizing, hole-punching, beveling, and pattern cutting into one automated workflow.

Whether you are processing Stainless Steel for furniture, Carbon Steel for structural chassis, or reflective Aluminum for aerospace, the T-Series delivers finished parts in seconds, not minutes.

Technical Parameters of Fiber Laser Tube Cutting Machine

Why Choose Arcus T-Series?

1. Zero Waste Technology: Save $15,000+/year in raw materials with our edge-to-edge cutting capability.

2. Pneumatic Intelligence: Self-centering chucks that won’t crush thin tubes.

3. Global Reliability: Using IPG/Raycus sources and French Schneider electronics.

4. Factory Direct: No middleman markups. Professional English support.

Advantages of CNC Laser Tube Cutting Machine

The End of the “Sawing Era”

If you walk onto your production floor right now, listen closely. Do you hear the screech of a cold saw? Do you see sparks flying from a manual grinder? Do you see an operator with a tape measure and a Sharpie marker?

If you do, you are witnessing profit leakage.

Traditional tube fabrication is a multi-step nightmare:

1. Cut to length (Saw) -> Accuracy: ±1.0mm

2. Move to Jig (Labor time)

3. Drill Holes (Drill Press) -> Burrs created

4. Deburr (Manual Grinding) -> Inconsistent quality

5. Clean (Wash)

The Arcus T-Series replaces all five steps with one: Load & Laser. You achieve a laser cutting tolerance of ±0.03mm, edges that are smooth enough to weld immediately, and holes that are perfectly round every single time.

“Zero Tailing” – How We Save You Money

One of the most searched terms by fabricators is “how to reduce laser tube waste”. We have the answer.

The Problem: The “Dead Zone” On a standard 2-chuck laser machine, the rear chuck clamps the pipe and pushes it forward. However, the chuck cannot move past the cutting head for safety reasons. This leaves a “Dead Zone” of un-cuttable pipe at the end—typically 200mm to 450mm. Imagine throwing away 40cm of high-grade Stainless Steel on every single stick. Over a year, that is tons of scrap metal.

The Arcus Solution: 3-Chuck / 4th Axis Technology The Arcus T-Series can be configured with a revolutionary 3-Chuck System.

• How it works: When the tube reaches the end, the middle chuck opens, allowing the rear chuck to push the tube through the front chuck. Alternatively, the third chuck can pull the tube from the front.

• The Result: We can cut down to the last 40mm or even achieve true Zero Tailing depending on the part geometry.

• The ROI: If you spend $500,000 a year on raw pipe, a 10% material saving puts $50,000 straight back into your pocket. The machine pays for itself on savings alone.

Anatomy of the Beast (Machine Build)

A laser cutting machine is only as accurate as its foundation.

1. The Bed: Thermal Annealing is Non-Negotiable

Many budget laser cutter manufacturers use bolt-together frames or simple welded tubes to save cost. These frames vibrate during high-speed acceleration (G-force), killing your accuracy. Arcus uses a Heavy-Duty Plate Welded Bed.

• The Process: After welding, every bed goes into a massive furnace for 600°C High-Temperature Annealing.

• The Why: This releases internal stress in the metal. Without this, a machine bed will twist and warp within 6-12 months. Arcus guarantees frame stability for 20 years.

2. Pneumatic Chucks: The “Hands” of Precision

Holding a round pipe is easy. But what about a thin-walled rectangular tube spinning at 120 RPM? Our Automatic Pneumatic Chucks feature:

• Self-Centering: One click, and the claws automatically find the geometric center of the tube.

• Adaptive Pressure: The system is smart. It grips a heavy H-beam with tons of force but treats a 0.8mm aluminum tube with a gentle touch to prevent deformation.

• Versatility: Capable of holding Round, Square, Rectangular, Oval, and special profiles like Channel Steel (U-bar) and Angle Steel (L-bar).

3.The Laser Source: Powering Your Cuts

We partner with top-tier brands to ensure reliability.

• IPG Photonics: The premium choice for high-volume manufacturing and reflective materials like copper and brass.

• Raycus: An excellent balance of performance and value, dominating the fiber laser cutting machine price performance ratio.

• Max Photonics: Known for stability in mid-range power applications.

4: Software Intelligence (CypTube & TubesT)

Hardware is muscle; software is the brain. The Arcus T-Series runs on FSCUT, the global standard for CNC laser cutting.

CypTube Control System You don’t need to be a coding genius. CypTube accepts standard .IGS and .STEP files directly from Solidworks, AutoCAD, or Inventor.

• Real-Time Simulation: See exactly how the machine will cut before you press “Start.”

• Fly Cutting: For perforated tubes (like supermarket shelves), the laser pulses rapidly while moving, cutting hundreds of holes in seconds without stopping.

TubesT Nesting Software Stop guessing how to fit parts on a pipe.

• Auto-Nesting: Import 50 different part files, and TubesT will arrange them on the raw tubes to maximize material yield.

• Common Edge Cutting: The software aligns two parts to share a single cut line. One cut separates two parts. This reduces cutting time by 30% and gas consumption significantly.

Material Capabilities (What Can You Cut?)

The versatility of the Arcus fiber laser allows you to service multiple industries.

1. Laser Cutting Steel (Carbon/Mild)

• Gas: Oxygen (O2).

• Physics: The exothermic reaction between Iron and Oxygen creates extra heat, allowing the laser to slice through thick plates (up to 25mm with 6kW) rapidly.

• Application: Construction beams, automotive chassis, heavy machinery.

2. Laser Cutting Stainless Steel

• Gas: Nitrogen (N2).

• Physics: Nitrogen acts as a shield, preventing oxidation.

• Result: A clean, silver edge that is ready for welding immediately. No grinding required. Perfect for food processing equipment and medical devices.

3. Laser Cutting Aluminium & Brass

• Gas: Nitrogen (N2) or Air.

• Challenge: These are highly reflective metals. Older CO2 lasers would be damaged by the reflection.

• Arcus Solution: Our fiber sources have built-in “Back-Reflection Isolation,” making it safe to process laser cutting aluminium and brass continuously.

The Business Case

Let’s talk about the tube laser cutting machine price versus the return on investment.

Scenario: Manufacturing a Gym Rack Component.

• Old Method (Saw + Drill):

  • Cut to length: 120 seconds

  • Measure & Mark: 180 seconds

  • Drill 6 Holes: 240 seconds

  • Deburr: 60 seconds

  • Total Time: 10 minutes per part.

  • Labor Cost ($20/hr): $3.33 per part.

• Arcus Laser Method:

  • Load & Auto-Feed: 30 seconds

  • Laser Cut & Hole Punch: 45 seconds

  • Total Time: 1.25 minutes per part.

  • Labor Cost: $0.41 per part.

The Conclusion: You produce 8x more parts per hour, and the cost per part drops by 87%. Most Arcus clients achieve a full ROI in 6 to 9 months.

Buying Guide – Choosing Your Power

Don’t overspend on wattage you don’t need. Use this guide to select the right laser power for your fiber laser cutting machine.

Installation, Training & Support

Buying an industrial laser cutting machine is a partnership. Arcus CNC ensures you are never left alone.

1. Remote Wi-Fi Diagnostics Every T-Series machine is Wi-Fi enabled. If you encounter an alarm, our engineers in Jinan can remotely access your controller (with your permission), diagnose the code, and fix software issues instantly.

2. On-Site Installation We don’t expect you to figure it out from a manual. We can dispatch experienced, English-speaking engineers to your facility (USA, Europe, Asia, Middle East) for a 5-7 day installation and training course.

3. Spare Parts Strategy We stock critical consumables (nozzles, lenses, ceramic rings) and ship via DHL/FedEx. We recommend every customer purchase a “Crash Kit” with their machine to ensure zero downtime.

Conclusion: The Future of Fabrication is Here

The era of manual measuring and bandsaw cutting is fading. In a global market where margins are tight and lead times are shrinking, you need the speed and laser cutting precision that only Arcus CNC can provide.

We are not just selling you a machine; we are selling you a competitive advantage. With over 15 years of experience and 500+ satisfied customers worldwide, Arcus CNC is your trusted partner in industrial automation.

Don’t let outdated technology slow you down.

Ready to Calculate Your Savings?

Send us your part drawings today. We will perform a Free Time Study and video record a sample cut just for you, so you can see the speed difference with your own eyes.

Frequently Asked Questions (FAQ)

Q1: How much does a tube laser cutting machine cost?

A: The tube laser cutting machine price depends heavily on the laser power (1kW vs 6kW) and bed length (6m vs 9m). Generally, entry-level models start around $30,000, while heavy-duty automated systems can range from $60,000 to $100,000+. Contacts Us for a precise factory-direct quote.

Q2: Is laser cutting safe? A: Yes, if proper protocols are followed. The Arcus T-Series comes with a fully enclosed safety cover with OD5+ rated laser-safe glass to protect the operator’s eyes from scattered radiation.

Q3: Can I cut square holes in round pipes?

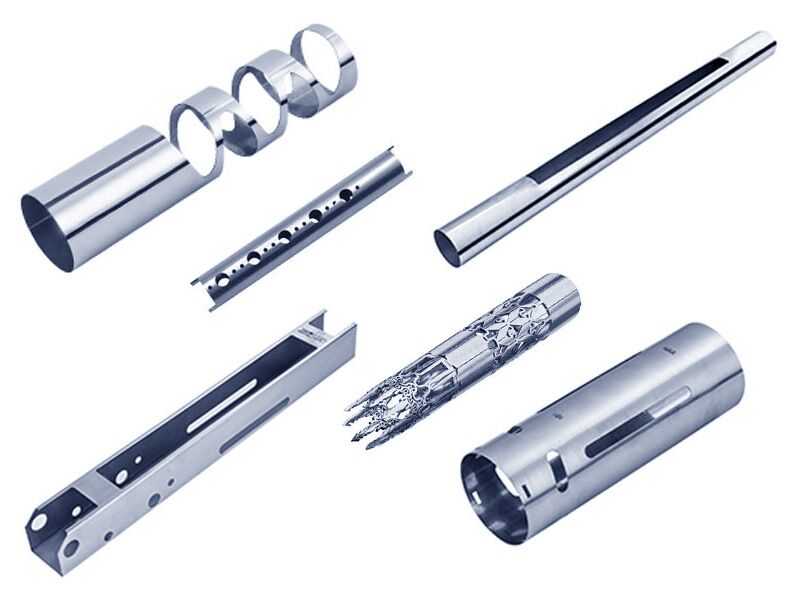

A: Absolutely. This is the main advantage of CNC laser cutting. You can cut any geometry—logos, text, hex holes, slots—on any tube profile without changing tools.

Q4: How does it handle dirty or rusty pipes?

A: We know the real world isn’t perfect. Arcus software includes a “Film Cut” or “De-Rust” parameter that vaporizes the rust layer or protective film in a quick pass before the main cut, protecting the nozzle.

Q5: What is the lead time for delivery?

A: Standard models (6-meter, 1kW-3kW) are typically ready to ship in 15-20 working days. Customized lengths or special voltage requirements may take slightly longer.
