CNC Fiber Laser Cutting Machine with Electrical Platform for Sheet Metal

Description

Available with laser power options from 1,000W to 6,000W, the machine supports customized working areas to meet different material thicknesses and production requirements. Equipped with the BOCHU FSCUT4000E control system and CypCutE professional laser cutting software, it supports intelligent functions including Automatic Nesting, Fly Cutting, Seamless Piercing, Micro-Joint Cutting, Automatic Center Finding, and Automatic Edge Finding. These features improve material utilization, cutting efficiency, and cut quality while simplifying programming and operation. With reliable performance, flexible configurations, and excellent cutting quality, the machine is widely used in industries such as kitchen equipment, office furniture, architectural decoration, HVAC systems, electrical enclosures, and general sheet metal fabrication, providing a cost-effective and highly productive laser cutting solution for metal workshops.

 Why Choose This Electrical Platform Sheet Metal Laser Cutter?

• Zero idle time – Dual electrical exchange pallets swap sheets in ≤25 seconds while cutting continues, eliminating loading downtime.

• Open design accessibility – No full enclosure allows easy loading of large or oversized sheets with forklifts or overhead cranes.

• Covers 90% of fabrication jobs – Cuts mild steel up to 20mm, stainless 12mm, and aluminum 8mm (6kW version).

• High precision and speed – ±0.05mm positioning accuracy, 1.2G acceleration, and 120m/min max travel speed.

• Automation ready – Vision-based autofocus, automatic nozzle centering, and optional cantilever loading system for semi-automated operation.

• Easy maintenance – Front-accessible components, modular slat table, and automatic lubrication system reduce daily upkeep.

Parameters of the CNC Sheet Metal Laser Cutter

Essential specifications for quick evaluation – clear and comparable.

Standard working area: 1500 × 3000mm (5 × 10ft) — customizable to 2000 × 4000mm, 2000 × 6000mm, or 2500 × 8000mm.

Components – Built for Daily Fabrication Shop Use

High-Rigidity Welded Machine Bed

The machine adopts a reinforced steel tube welded structure with professional stress-relief treatment to eliminate internal stress generated during welding. The bed features excellent load-bearing capacity, high structural rigidity, and strong resistance to deformation, ensuring long-term machining stability. The surface is equipped with mineral insulation plates that effectively resist high-temperature thermal radiation and molten slag generated during cutting, minimizing the risk of long-term micro-deformation caused by continuous thermal exposure.

Aerospace-Grade Aluminum Alloy Beam

The crossbeam is manufactured from aerospace-grade aluminum alloy and undergoes aging treatment, achieving an ideal balance of lightweight design, high rigidity, and excellent toughness. Compared with conventional steel beams, the aerospace aluminum beam features lower weight and reduced inertia, effectively decreasing load resistance during high-speed reciprocating movement. This significantly improves dynamic response speed, enabling faster acceleration and deceleration, quicker cutting start/stop performance, and more precise positioning.

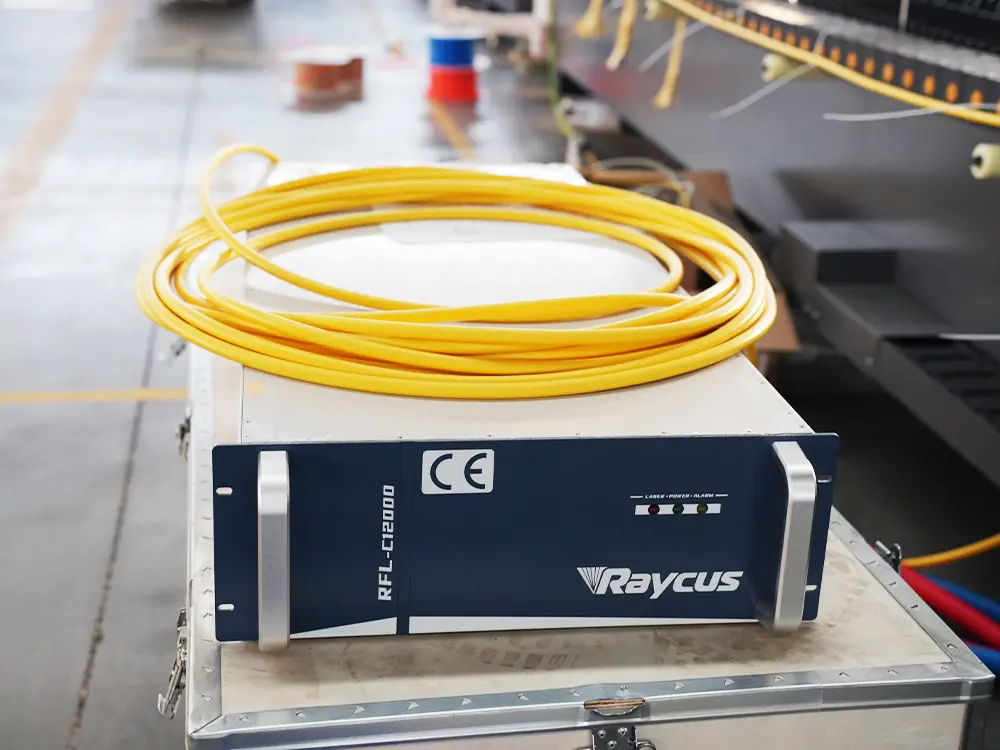

Fiber Laser Source (Raycus / Max / IPG)

The machine is equipped with a high-quality fiber laser source from leading brands including Raycus, Maxphotonics, or IPG. With center wavelength of 1064nm–1080nm and electro-optical conversion efficiency exceeding 40%, it delivers excellent beam quality, stable power output, and efficient cutting performance. The laser supports 10%–100% stepless power adjustment with short-term power stability within ±1%, ensuring consistent cutting quality across different production batches.

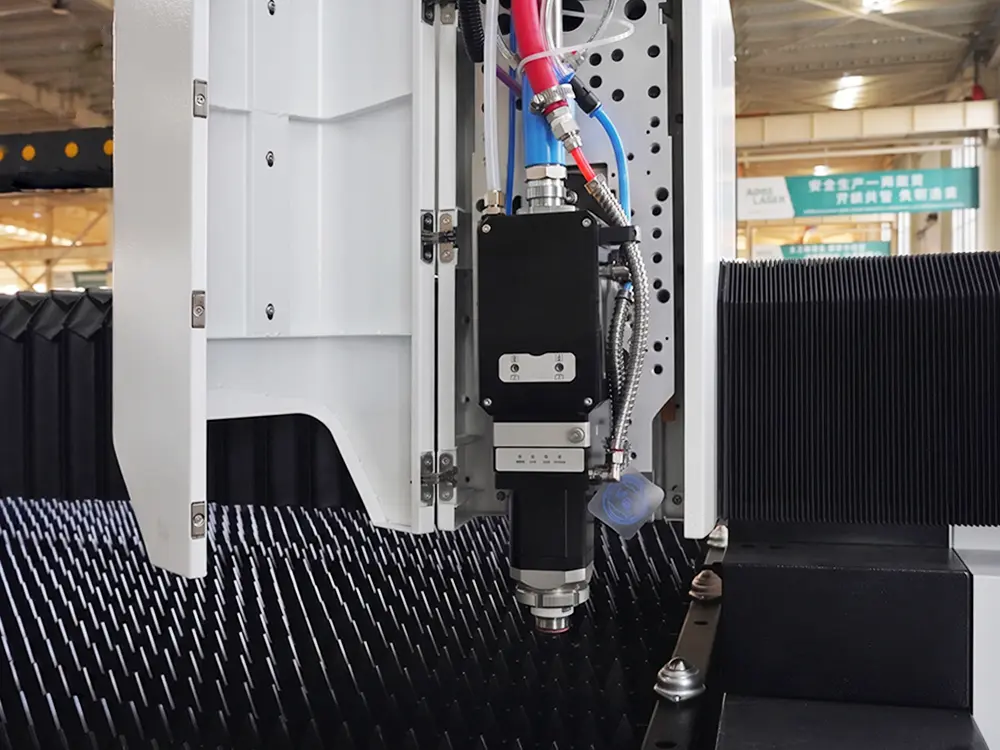

BOCHU BLT Series Intelligent Cutting Head

The machine is equipped with a BOCHU BLT series laser cutting head, supporting automatic focusing and collision protection. With multiple built-in sensors and real-time closed-loop intelligent monitoring, the cutting head can quickly detect abnormal conditions and provide early warnings. The high-precision capacitive height sensing system detects real-time changes in sheet height and automatically adjusts the focus position dynamically, maintaining a stable cutting focal distance throughout the entire process. This effectively eliminates cutting defects caused by minor sheet surface unevenness, such as incomplete penetration, inconsistent cut quality, and edge burning.

Inovance EtherCAT Absolute Servo System

All motion axes are driven by an Inovance EtherCAT absolute servo system, featuring high-speed communication, high-precision motion control, and advanced multi-axis coordinated operation. Equipped with high-precision absolute encoders, the system eliminates the need for manual homing after power-on, reducing setup procedures and shortening preparation time. The servo motors provide strong torque reserves with smooth acceleration and deceleration performance, ensuring stable operation under high-speed, high-acceleration conditions.

High-Precision Transmission System

The machine adopts high-precision linear guide rails (HIWIN, Taiwan) combined with precision-ground helical racks and KOFON planetary gear reducers. This combination features minimal transmission clearance (<3 arcmin backlash), smooth movement, and excellent positioning accuracy. With a transmission efficiency of over 97%, it minimizes power loss and ensures strong, stable force output for both thick plate piercing and high-speed thin sheet cutting. Even during high-speed cutting operations, the system maintains stable performance, ensuring long-term cutting precision without deformation.

Hanli Precision Laser Chiller

The machine is equipped with a Hanli fiber laser chiller featuring dual independent temperature control circuits. With temperature control accuracy of up to ±1℃, it efficiently removes heat generated by the laser source and cutting head. The chiller integrates multiple safety protection functions, including water flow monitoring, over-temperature alarms, low-water protection, and fault alarms, ensuring reliable operation of the laser system during 24/7 continuous production.

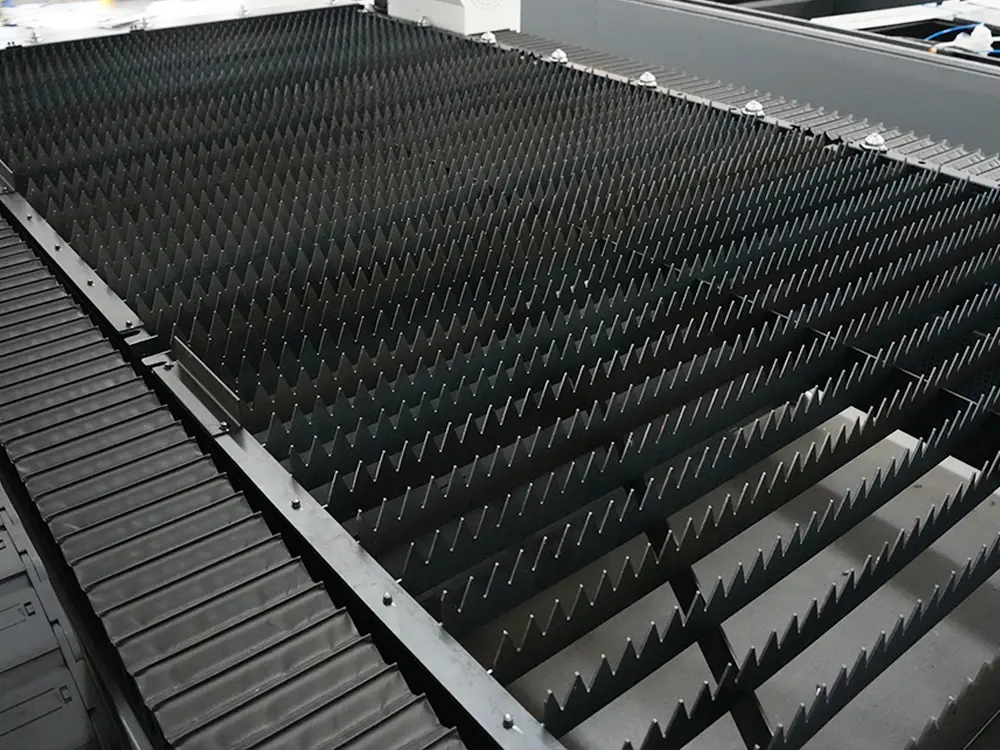

Modular Tooth-Type Slat Cutting Table

The machine adopts a modular tooth-type slat cutting table design, offering excellent flexibility, easy assembly and disassembly, and convenient maintenance. When a specific section becomes worn or damaged, only the corresponding module needs to be replaced instead of the entire worktable, significantly reducing maintenance costs. The tooth-type slats have minimal contact with the workpiece, effectively reducing thermal adhesion, slag accumulation, and burning marks while allowing cutting waste to naturally fall through gaps for easy cleaning.

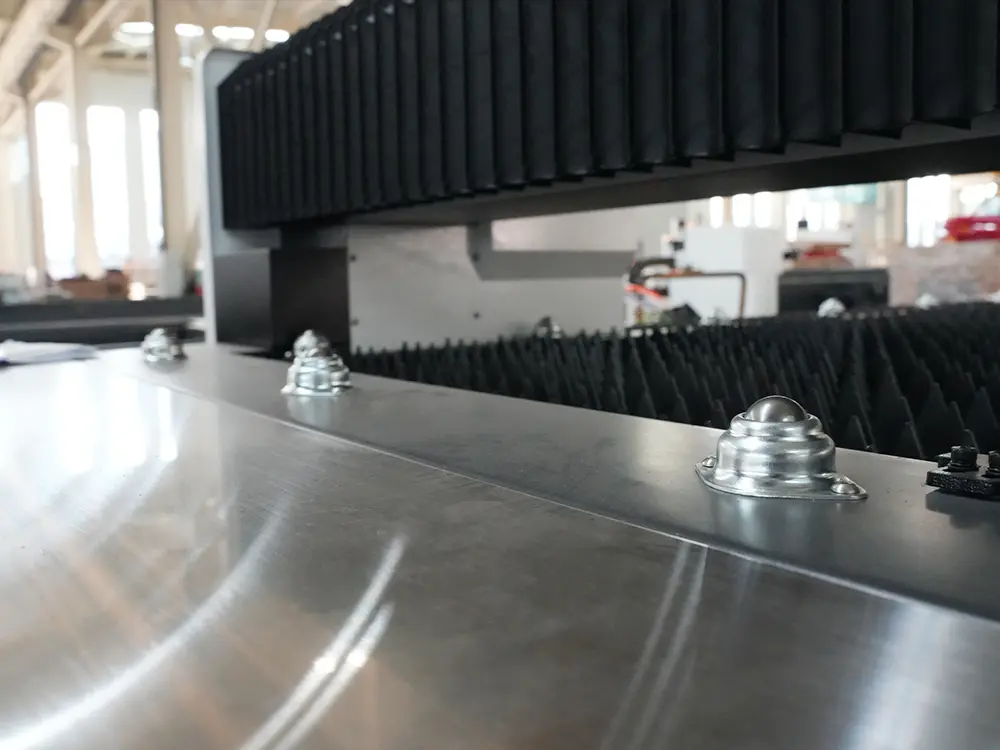

Electrical Exchange Platform

The dual-pallet electrical exchange platform is driven by a heavy-duty chain and motor system, with each pallet holding up to 1,000kg load. The swap time of ≤25 seconds ensures continuous cutting with zero idle time between sheet changes, dramatically improving overall production efficiency. The electrical drive system is quieter, cleaner, and lower maintenance compared to hydraulic alternatives, making it ideal for fabrication shop environments.

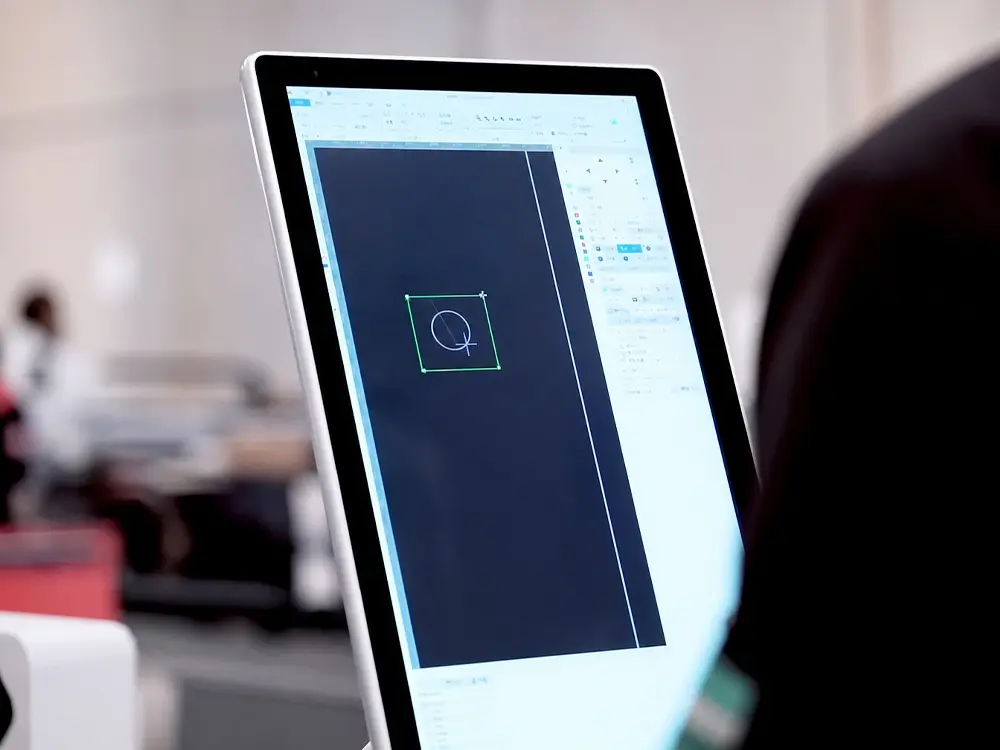

BOCHU FSCUT4000E Control System

The machine adopts the BOCHU FSCUT4000E laser cutting control system combined with CypCutE software. The system integrates drawing import, cutting path optimization, and process parameter adjustment into one intelligent platform. With comprehensive smart functions including Automatic Nesting, Fly Cutting, Seamless Piercing, Micro-Joint, Automatic Center Finding, and Automatic Edge Finding, it improves material utilization, enhances cutting accuracy, and simplifies daily operation. The system is equipped with a wireless handheld controller (WKB-V6) for convenient machine operation, axis movement, parameter adjustment, and edge finding functions.

Auxiliary Systems

Automatic Lubrication System: Regularly and quantitatively supplies lubricating oil to guide rails and racks, reducing manual maintenance requirements, minimizing wear on transmission components, and ensuring smooth and stable high-speed operation over long production cycles.

Fume Extraction System: Removes smoke and fumes generated during cutting from underneath the cutting table, maintaining a cleaner working environment, reducing airborne pollutants, and improving operator safety and comfort.

Bellows-Type Protective Covers: X and Y axes are equipped with thickened wear-resistant, waterproof, and dust-resistant bellows covers, effectively preventing metal splashes, cutting dust, and oil fumes from entering guide rails and transmission systems.

Fully Enclosed Cable Carrier: Organizes and protects cables, air hoses, and lubrication lines from metal chips, high-temperature sparks, and dust, improving electrical system safety and reliability.

Applications – Where This Electrical Platform Laser Cutter Excels

Kitchen Equipment & Food Service Industry

Materials processed: 201, 304, 316 food-grade stainless steel, cold-rolled steel sheets.
Typical parts: Commercial cooktop panels, stainless steel worktables, sink cabinets, range hood components, sterilizer cabinet panels, kitchen hardware connectors.
Why this machine: High-precision cutting with minimal heat-affected zone reduces edge burning, thermal deformation, and oxidation. Clean, smooth cut edges typically require no secondary polishing. Intelligent nesting maximizes material utilization, reducing waste of high-value stainless steel sheets.

Office Furniture Manufacturing

Materials processed: Cold-rolled steel, mild steel, thin stainless steel, galvanized sheets.
Typical parts: Steel desk frames, filing cabinets, storage cabinets, shelving panels, computer desk supports, office equipment enclosures.
Why this machine: High-speed cutting delivers clean edges and precise dimensions, enabling parts to proceed directly to bending, assembly, and coating without intermediate finishing. Optimized nesting maximizes material utilization and lowers production costs for high-volume standardized manufacturing.

Building Materials & Decorative Metal Industry

Materials processed: Stainless steel, carbon steel, patterned plates, color-coated galvanized sheets.
Typical parts: Metal decorative strips, curtain wall components, hollow screens, staircase railings, door/window frames, irregular ceiling accessories.
Why this machine: Excels in reproducing complex contours, hollow structures, and intricate decorative patterns with outstanding fidelity. The non-contact process eliminates mechanical pressure, preventing deformation and surface scratches. Handles both small-batch custom jobs and high-volume production with remarkable flexibility.

Electrical Enclosure & Cabinet Manufacturing

Materials processed: Cold-rolled steel, galvanized sheets, stainless steel, electro-galvanized sheets.
Typical parts: Electrical cabinets, industrial control boxes, network racks, server cabinets, charging pile cabinets, instrument housings, security equipment enclosures.
Why this machine: High-precision servo transmission ensures accurate positioning and stable operation, guaranteeing consistent dimensional accuracy for holes, slots, and cutouts. Batch nesting delivers parts with consistent dimensions for full interchangeability. Laser-cut edges are smooth and virtually burr-free, reducing assembly difficulties while improving production safety and efficiency.

HVAC Equipment Manufacturing

Materials processed: Galvanized steel, cold-rolled steel, corrosion-resistant stainless steel.
Typical parts: Air conditioning housings, ventilation duct fittings, fan frames, heat exchanger covers, pipe connection flanges, equipment brackets.
Why this machine: Delivers both high-speed thin sheet processing and stable thick plate cutting. Intelligent features such as Fly Cutting and Seamless Piercing dramatically boost throughput. Parts come off the machine with smooth edges, accurate dimensions, and minimal deformation, ready for bending, welding, and installation without intermediate finishing.

Security Equipment Manufacturing

Materials processed: Carbon steel plates, stainless steel protective panels.
Typical parts: Surveillance equipment housings, security control boxes, security door reinforced plates, barrier gate supports, safe box structural panels.
Why this machine: High precision and excellent cut quality meet both appearance requirements of surveillance housings and structural requirements of thick steel components. No tooling required and fast production changeover make it suitable for flexible manufacturing of multiple product types.

Agricultural Machinery & General Fabrication

Materials processed: Mild steel, stainless steel, aluminum.
Typical parts: Harvester parts, plow shares, implement frames, custom brackets, prototypes.
Why this machine: Versatile material handling capability and fast setup make it ideal for job shops handling diverse orders. The electrical exchange table reduces downtime between different jobs, while the open design allows easy loading of oversized or irregular parts.

After-Sales Service – Keep Your Production Running

• Warranty: 2 years (laser source: 3 years).

• Response: 2-hour remote diagnosis, 48-hour on-site service.

• Spare parts: Warehouses in USA, Germany, UAE, Thailand – same-day shipping for critical components.

• Installation & training: 5 days on-site at your facility, included in the price.

• Software updates: Free for life – new cutting parameters and features added quarterly.

• Remote support: Video call + remote desktop control via HDMI capture for quick troubleshooting.

Real Case Study – Job Shop Increases Output by 35% with 3kW Exchange Table Laser

Client: A mid-sized metal fabrication job shop in Ontario, Canada.

Challenge: They had a 2kW CO₂ laser (slow, high maintenance) and a plasma cutter (rough edges). They needed to cut 3–12mm mild steel and 2–6mm stainless for custom orders – 50+ different part numbers per week. Manual sheet loading caused bottlenecks; operators had to stop cutting to load each sheet.

Our solution: 3kW CNC fiber laser cutting machine with electrical exchange platform, open design, 1500×3000mm working area.

Results after 4 months:

• Cutting speed increased by 2.5x compared to CO₂ laser.

• No more secondary grinding – edge quality ready for welding and powder coating.

• Sheet change time reduced from 3 minutes to 25 seconds – saved over 1 hour per day.

• Overall shop output increased by 35% with the same two operators.

• Material utilization improved 15% via nesting software.

• ROI achieved in 9 months.

Why Choose Arcut (arcuscnc) for Your Sheet Metal Laser Cutter?

• Specialized in open-design exchange table machines – we’ve installed over 800 units in fabrication shops worldwide.

• Transparent pricing – no hidden fees for shipping, training, or software.

• Local spare parts on four continents (USA, Germany, UAE, Thailand) – minimize your downtime.

• 3D CAD/CAM nesting software included – free lifetime updates.

• We guarantee cutting specifications – we test your material before shipping.

• Proven electrical exchange platform – reliable, quiet, and low-maintenance for daily shop use.
