Description

Solve the Welder Shortage. Weld, Clean, and Cut in One Portable Unit.

• Category: Industrial Welding Solutions

• Model: Arcus W-Series (1500W / 2000W / 3000W/6000W)

• Function: 3-in-1 (Welding, Rust Removal, Cutting)

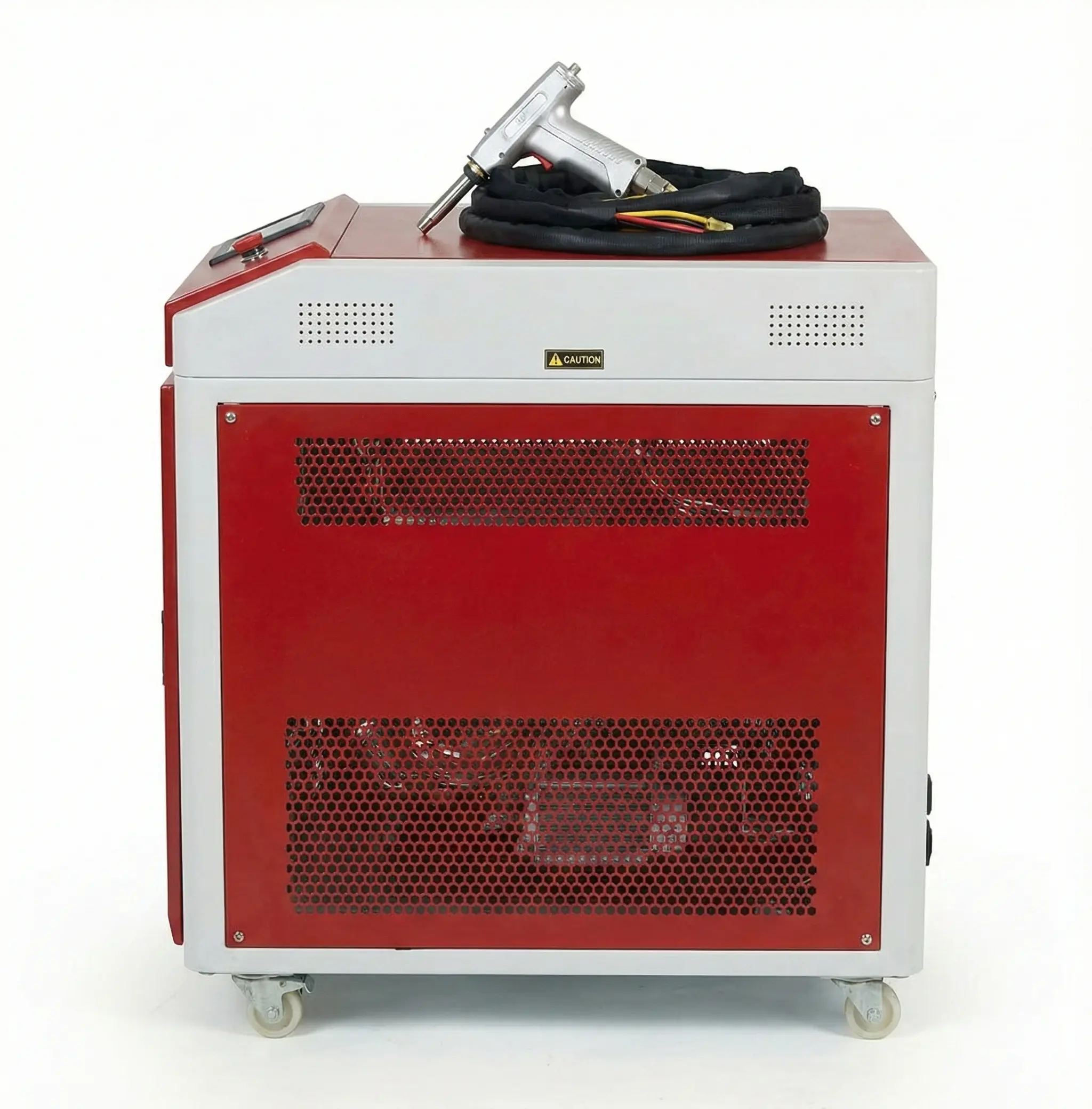

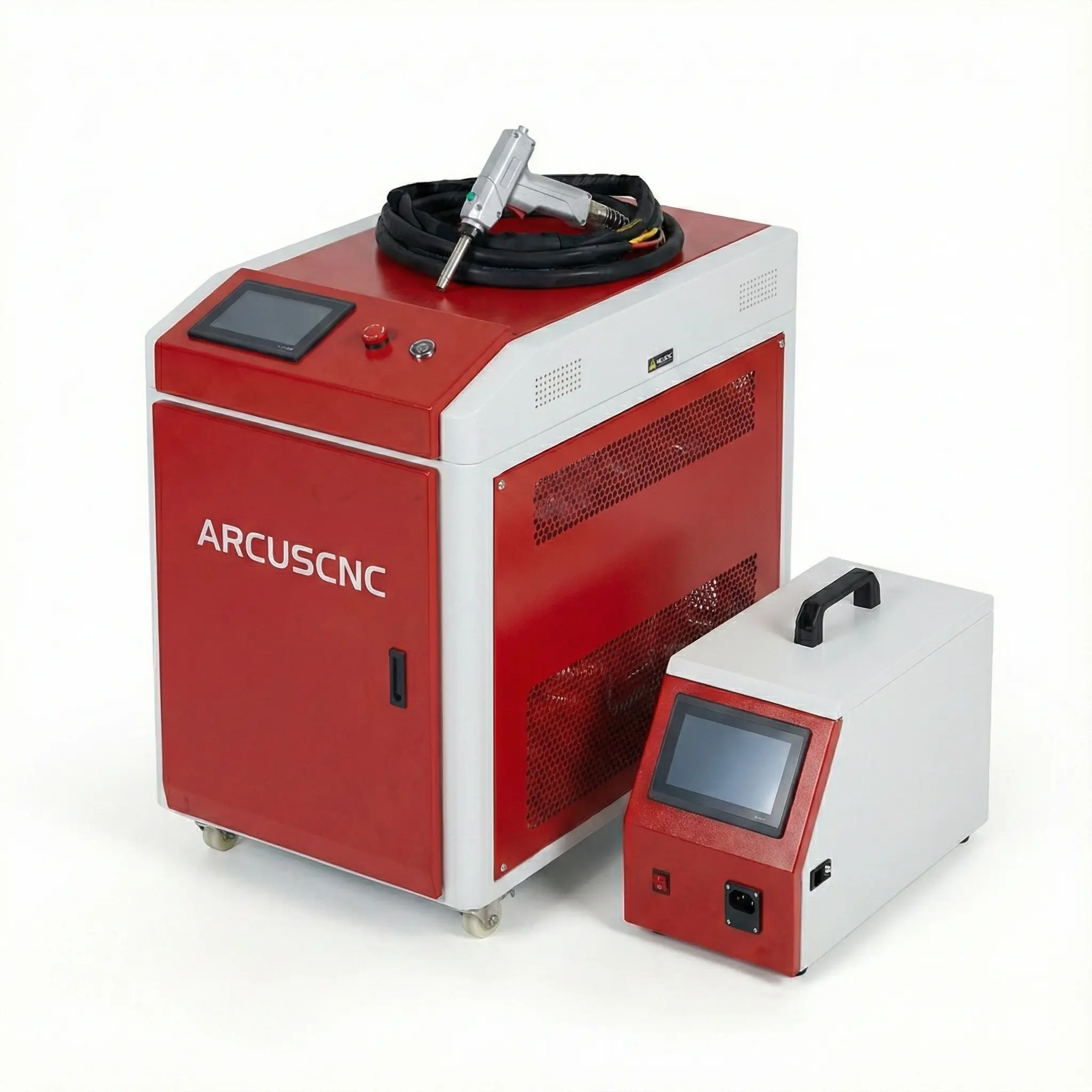

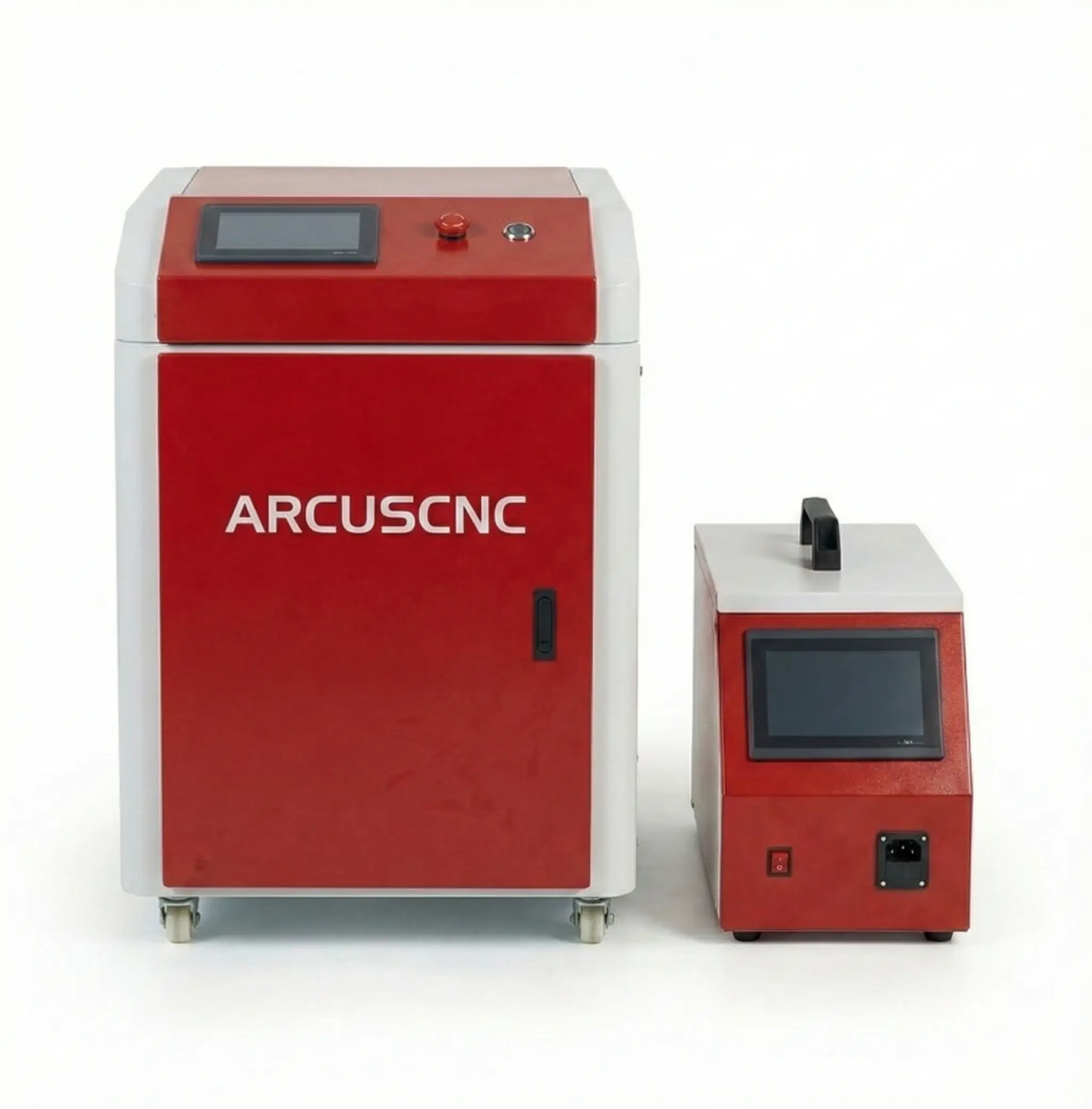

Arcus CNC Handheld Fiber Laser Welding Machine

Stop Searching for Expensive TIG Welders. Make Your Own.

The manufacturing world is facing a crisis: skilled TIG welders are retiring, and new ones are demanding $40+/hour. The Arcus CNC Handheld Fiber Laser Welding Machine is the technology that bridges this gap. It replaces the high skill requirement of TIG welding with the simplicity of a laser pen.

What took 5 years to master now takes 10 minutes to learn.

Whether you are fabricating Stainless Steel kitchen equipment, Aluminum automotive parts, or Carbon Steel cabinets, the Arcus W-Series delivers aesthetic, strong welds 4x faster than traditional methods—with zero post-weld grinding required.

Why The Arcus W-Series?

1. 3-in-1 Versatility: It’s not just a welder. Flip a switch, change a nozzle, and it becomes a Laser Rust Remover or a Sheet Metal Cutter.

2. Speed Demon: Welds up to 4x faster than TIG welding.

3. No Grinding Needed: Produces smooth, fish-scale welds that require no secondary polishing.

4. Low Heat Input: Zero deformation on thin sheets (<1mm). No more warped cabinets.

Quick Specs

The “Skills Gap” Crisis

Ask any fabrication shop owner what their biggest headache is. They won’t say “material costs.” They will say: “I can’t find welders.”

Traditional TIG (Tungsten Inert Gas) welding is an art form. It requires steady hands, perfect foot pedal coordination, and years of practice to weld thin aluminum without burning through. When your master welder retires, your production line stalls.

The Laser Democratization The Arcus Handheld Laser Welder changes the game. By using a focused beam of light instead of an electric arc, the process becomes incredibly stable.

• The “Wobble” Tech: The laser beam automatically oscillates (swings) thousands of times per second. This stirs the molten pool for you.

• The Result: A novice operator can pick up the gun and perform a perfect, vacuum-tight weld on 1mm stainless steel in their first hour of training.

The 3-in-1 Revolution (More Than Just a Welder)

Why buy three machines when one does it all? The Arcus W-Series features a modular control system that allows for three distinct modes.

Mode 1: Laser Welding

The core function. Using a fiber optic cable to deliver high-density energy.

• Application: Joining stainless steel, carbon steel, galvanized sheet, and aluminum.

• Benefit: Minimal Heat Affected Zone (HAZ). You can weld 0.8mm stainless steel letters for signage without any warping or burn marks.

Mode 2: Laser Cleaning (Rust Removal)

Change the focusing lens and switch to “Clean Mode.” The beam expands to a width of up to 80mm.

• What it removes: Rust, oil, paint, oxide layers, and graffiti.

• Application: Pre-weld cleaning (removing oil from steel) or post-weld cleaning (removing discoloration). It’s chemical-free and non-abrasive.

Mode 3: Laser Cutting

Install the copper cutting nozzle. Now you have a manual laser cutter.

• Application: While it doesn’t replace a gantry CNC table, it is perfect for on-site modifications. Need to trim a corner off a cabinet during installation? Need to cut a hole for a sensor? The handheld gun does it instantly.

The “Death Match” – Laser vs. MIG vs. TIG

Is handheld laser welding always better? Let’s look at the data objectively.

The Verdict:

• Stick with MIG if you are welding thick structural I-beams (10mm+) on construction sites.

• Switch to Arcus Laser if you are doing precision sheet metal work (cabinets, kitchenware, medical devices, automotive parts) under 6mm. The labor savings on polishing alone will pay for the machine.

The Arcus Advantage – Specs That Matter

There are many cheap laser welders on the market. Here is why the Arcus W-Series is “Industrial Grade” vs. “Hobby Grade.”

1. The “Dual-Wobble” Laser Gun

Cheap welders use a static beam. Arcus uses Dual-Axis Wobble Technology.

• Why it matters: A static beam is too thin (0.05mm). It requires perfect fit-up. If there is a tiny gap, the beam passes right through.

• Our Solution: Our beam spins in circles, triangles, or figure-8s. This effectively widens the weld seam to 0-5mm, bridging gaps and creating a smoother bead.

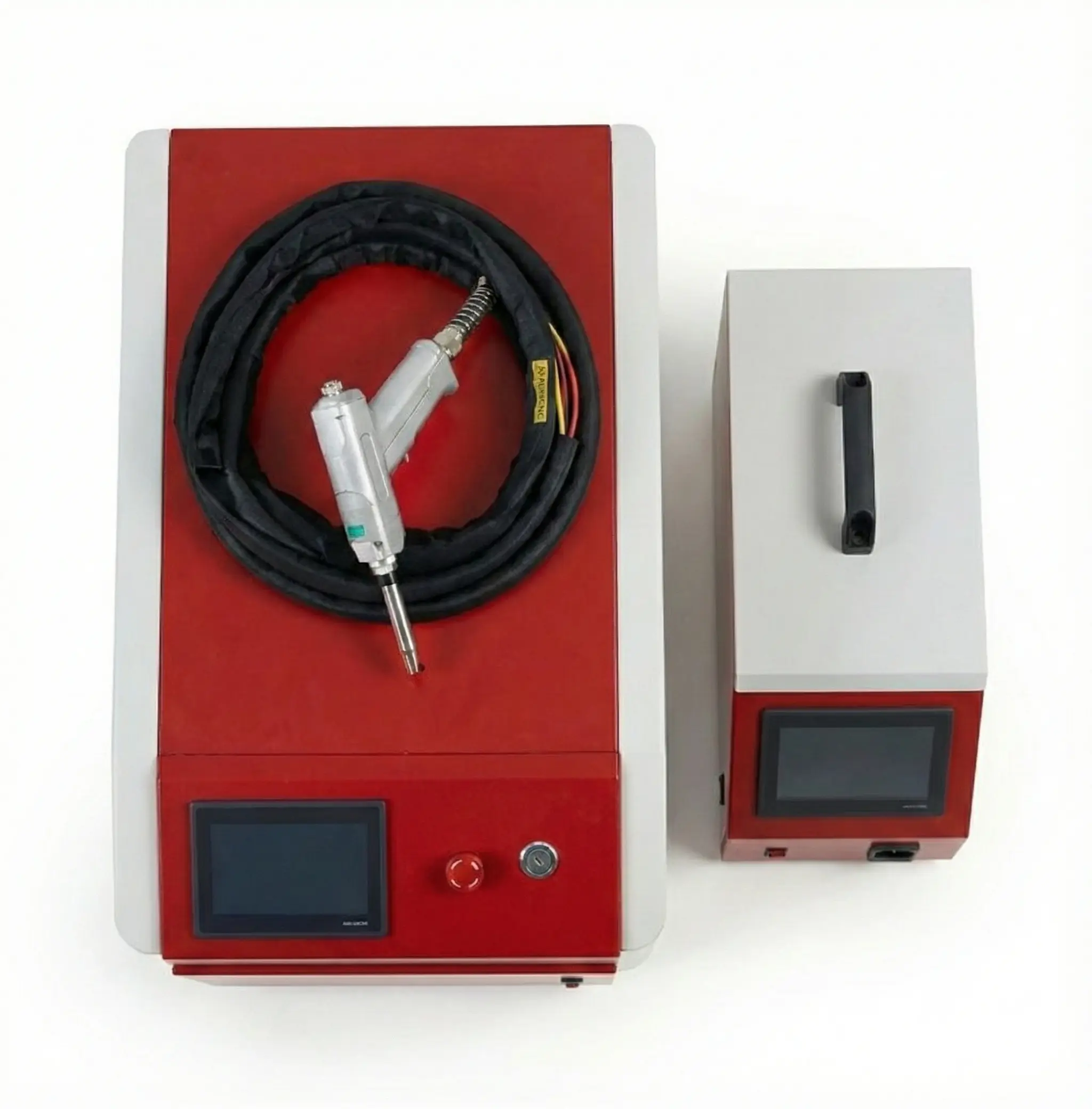

2. Automatic Wire Feeder (Included)

Laser welding traditionally hates gaps. If your fit-up isn’t perfect, you get no weld. Every Arcus W-Series comes with a computerized Auto Wire Feeder.

• It feeds filler wire (0.8mm – 1.6mm) automatically into the melt pool.

• This allows you to weld parts with gaps up to 1.0mm, making the machine practical for real-world fabrication.

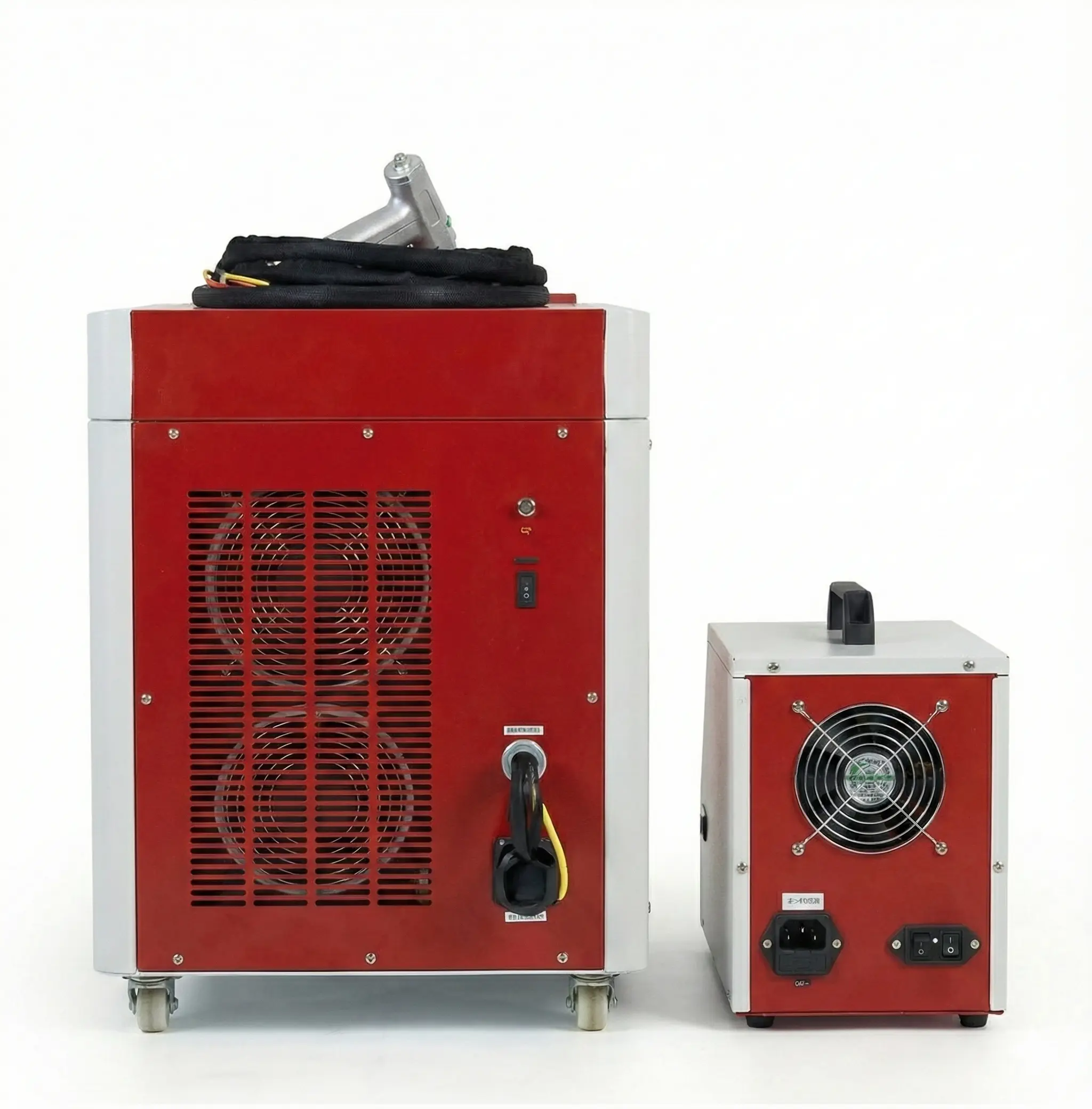

3. The Chiller System

Lasers get hot. Stability is key. We integrate a massive industrial water chiller inside the cabinet. It’s not an external box you have to drag around. It maintains the laser source temperature within ±0.5°C, ensuring the power doesn’t drop even if you weld for 8 hours straight in a hot factory.

Materials & Thickness Guide

“Can I weld Aluminum?” This is the #1 question. Yes. Fiber lasers are excellent for aluminum.

Max Single-Pass Penetration Depth:

(Note: For thicker materials, multiple passes or double-sided welding can double these figures.)

The Business Case (ROI Calculation)

Let’s do the math. Why spend $6,000+ on a laser welder?

Scenario: A Kitchen Cabinet Factory

• Task: Weld 50 meters of stainless steel corners per day.

• Old Method (TIG):

  • Welding speed: 0.5 meters/min = 100 mins.

  • Polishing/Grinding (Mandatory for TIG): 150 mins.

  • Total Time: 250 mins (4.1 hours).

• Arcus Laser Method:

  • Welding speed: 2.0 meters/min = 25 mins.

  • Polishing: 0 mins (The weld is already perfect).

  • Total Time: 25 mins.

Result: You are 10x faster. If your shop rate is $60/hour, you save $216 per day. Payback Period: roughly 30 working days.

Safety – The Elephant in the Room

We must be honest. Handheld laser welding introduces new safety risks compared to arc welding. A laser beam can reflect off shiny surfaces and travel across the room.

The Arcus Safety Protocol:

1. Safety Loop Circuit: The gun has a skin sensor. The laser will only fire if the gun tip is touching the metal workpiece. If you drop the gun, it instantly cuts off.

2. Protective Glass: We supply OD6+ Laser Safety Glasses. These are mandatory.

3. Key Switch & E-Stop: Industrial standard physical interlocks.

Recommendation: We strongly suggest setting up a laser welding curtain or dedicated booth to protect other workers in the facility.

Maintenance & Troubleshooting

“Is it fragile?” Fiber lasers are solid-state. They are actually more durable than old transformer-based welders.

The Maintenance Checklist:

1. Protective Lens (The Consumable): There is a small glass window at the tip of the gun to stop sparks from hitting the focus lens. This costs ~$2 and needs replacing once a week (depending on usage).

2. Nozzle Tip: Change monthly if worn out.

3. Water & Dust: Keep the chiller water clean and the rear fan filters dust-free.

That’s it. No tungsten grinding. No wire liner jams. No complex PCB boards blowing up.

Buying Guide – Which Model Do I Need?

• Choose the W-1500 (1500W) if: You primarily work with thin sheet metal (1mm-3mm). Kitchen equipment, advertising letters, electrical boxes.

• Choose the W-2000 (2000W) if: You are a general fabrication shop. You see a mix of 1mm stainless and 4mm mild steel brackets. This is our Best Seller.

• Choose the W-3000 (3000W) if: You do heavy repair work, agricultural equipment, or need to weld thick aluminum plates (5mm+).

Conclusion: The Future is in Your Hands

The handheld fiber laser welder is not a trend. It is the new standard. In 5 years, finding a sheet metal shop that doesn’t have a laser welder will be like finding a carpenter who uses a hand saw instead of a circular saw.

Arcus CNC offers you the industrial build quality of European machines at a price point that makes ROI immediate.

Stop turning away jobs because you don’t have enough skilled welders. Equip your team with the tool that makes everyone a master.

Frequently Asked Questions (FAQ)

Q: Is it hard to switch between Welding, Cleaning, and Cutting? A: No. It takes about 30 seconds. You unscrew the welding nozzle, screw on the cleaning nozzle, and change the mode on the touchscreen.

Q: Can I use it without wire? A: Yes. “Autogenous” laser welding (no wire) is faster and produces a cleaner look. But fit-up must be tight (gap < 0.1mm). If you have gaps, turn on the Wire Feeder.

Q: How long is the fiber cable? A: The standard length is 10 meters (32 feet). This gives you a huge working radius, allowing you to weld large tanks or structures without moving the machine.

Q: Does it use gas? A: Yes. You need shielding gas to prevent oxidation (black soot).

• Argon: Best for welding stainless/aluminum.

• Nitrogen: Good for cutting or cleaning.

• CO2: Generally not recommended for fiber lasers.

Appendix: Glossary of Laser Welding Terms(Quoted from Wikipedia)

• Wobble Frequency: The speed at which the beam oscillates. Higher frequency = smoother weld surface.

• Peak Power: The maximum energy output. High peak power is crucial for breaking the oxide layer on Aluminum.

• Duty Cycle: Percentage of time the laser is on. Arcus CW (Continuous Wave) lasers have a 100% duty cycle.

• HAZ (Heat Affected Zone): The metal area that gets hot but doesn’t melt. Laser welding minimizes this, preventing strength loss in the surrounding metal.
